Home > Products > Automotive Batteries > EFB Start Stop Batteries
JOZO GROUP Top Global Batteries Manufacturers
JAPAN TECHNOLOGY TOKUSHIMA BATTERY

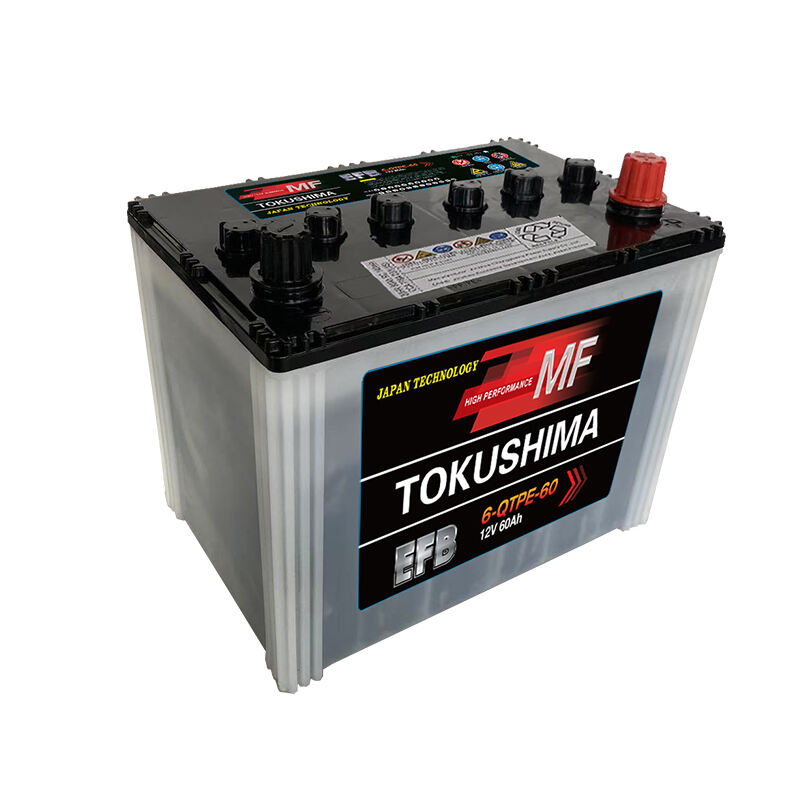

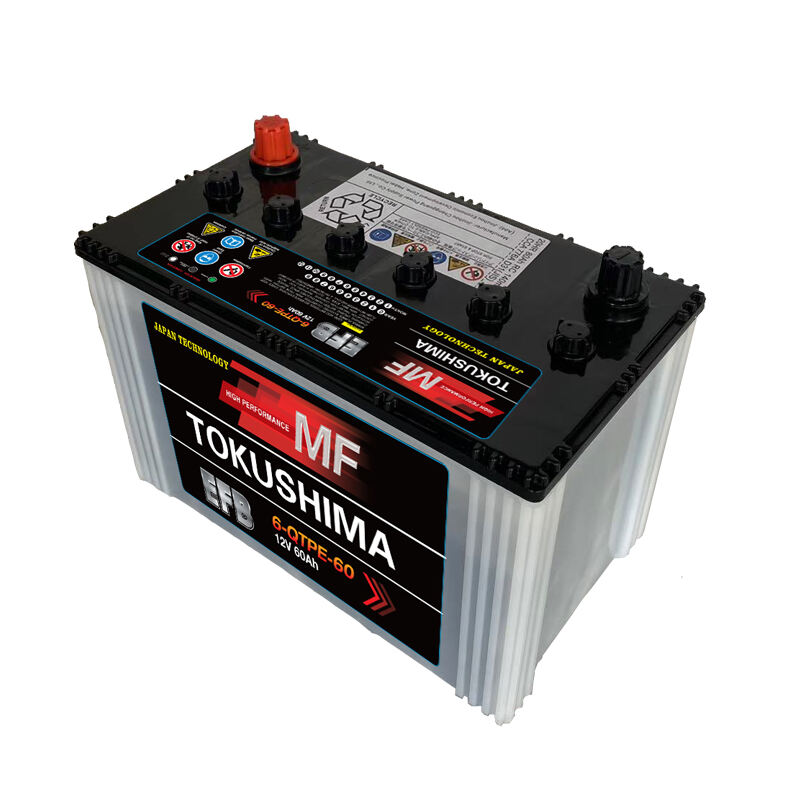

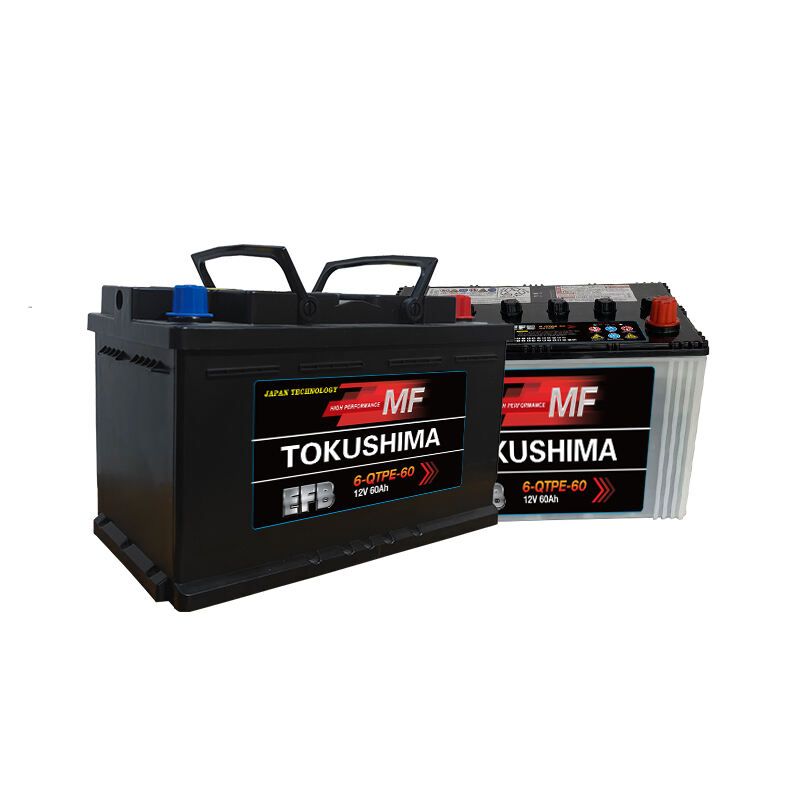

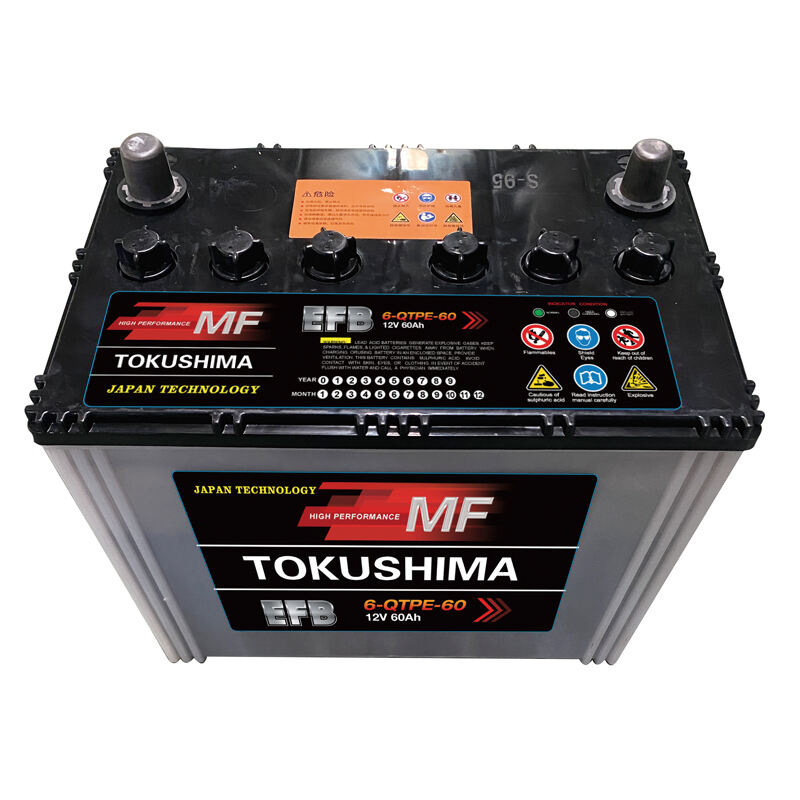

TOKUSHINMA EFB maintenance free start stop start battery 6-QTFE-60 12V 60Ah.
The powerful Absorbent Glass Mat Battery (EFB) is the right solution for complex start-stop systems withbraking energy recovery.
It guarantees a life of at least three times more cycles compared with a conventional battery. Thanks to its high load capacity, it is able to absorb large overvoltages from braking operations,making energy recovery possible.
| Brand | TOKUSHIMA |
| Name | 6-QTPE-60 Car Start Stop Battey |
| Volage | 12V |
| Capacity | 60Ah |
| CCA | 780 |
| Dimensions | 239*173*188mm |
| Weight | 17.2Kg |
| Uselifes | 5-8 Years |
| Warranty | 2-3 Years |
Ideal for vehicles with start-stop system and braking energy recovery (recuperation)
For demanding climatic and weather conditions: 135%Cold Cranking Amps (CCA)
Long life of at least three times more cycles*
Very high deep-discharge capability
20 % less energy consumption and greenhouse emissions*
Extreme safety: 100 % leak-proof
Maintenance-free - saves labor and costs
TOKUSHIMA EFB-TYPE(START/STOP BATTERY):

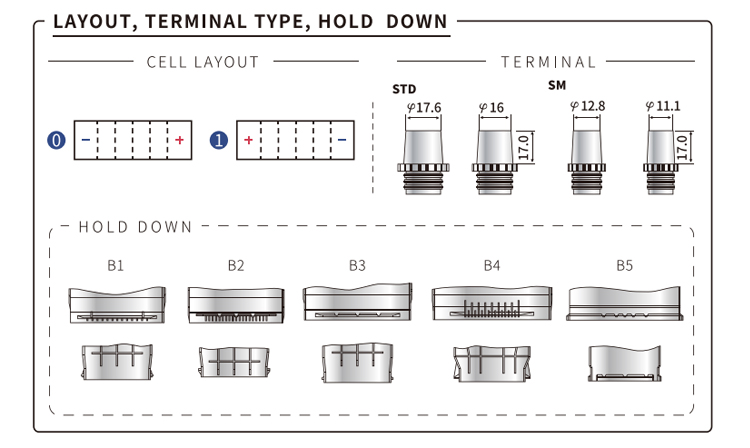

| Model | Voltage(V) | Capacity(Ah) | Dimension(mm) | CCA(-18℃) | Layout | Terminal | HOLD DOWN | ||
| L | W | TH | |||||||
| EFB-K42/M42 | 12 | 36 | 195 | 128 | 219 | 440 | 00/1 | SM | |

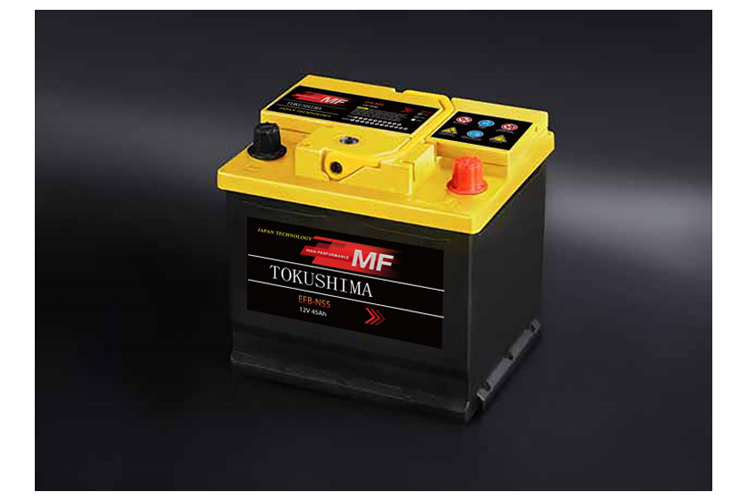

| EFB-N55 | 12 | 45 | 237 | 127 | 222 | 550 | 00/1 | SM/STD | |
| EFB-B24S | 12 | 45 | 237 | 127 | 222 | 535 | 00/1 | SM/STD | |
| EFB-Q85 | 12 | 65 | 231 | 172 | 223 | 780 | 00/1 | STD | B1 |
| EFB-S95/S85 | 12 | 70 | 259 | 174 | 225 | 880 | 00/1 | STD | B3 |
| EFB-T115/T105 | 12 | 80 | 300 | 173 | 222 | 980 | 00/1 | STD | B3 |
| EFB-E41 | 12 | 100 | 406 | 171 | 227 | 1080 | 00/1 | STD | |
| EFB-40 LB1 | 12 | 40 | 207 | 175 | 175 | 480 | 00/1 | STD | B5 |
| EFB-44 Ll | 12 | 44 | 207 | 175 | 190 | 580 | 00/1 | STD | B5 |
| EFB-50 LB2 | 12 | 50 | 239 | 173 | 174 | 780 | 00/1 | STD | B5 |
| EFB-62 L2 | 12 | 62 | 239 | 173 | 188 | 780 | 00/1 | STD | B5 |
| EFB-65 LB3 | 12 | 65 | 275 | 174 | 174 | 880 | 00/1 | STD | B5 |
| EFB-70 L3 | 12 | 70 | 271 | 174 | 185 | 880 | 00/1 | STD | B5 |
| EFB-80 L4 | 12 | 80 | 315 | 175 | 190 | 980 | 00/1 | STD | B5 |
| EFB-75T7 | 12 | 75 | 315 | 175 | 175 | 1020 | 00/1 | STD | B5 |
| EFB-90 LB5 | 12 | 90 | 353 | 174 | 175 | 1050 | 00/1 | STD | B5 |
| EFB-100 L5 | 12 | 100 | 349 | 172 | 187 | 1050 | 00/1 | STD | B5 |

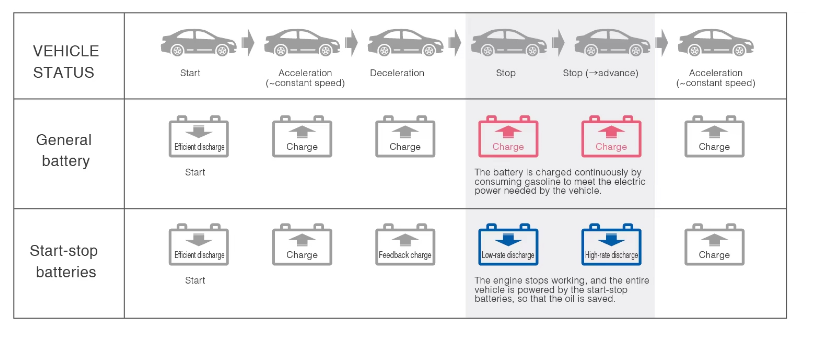

Working principle of the automotive lead-acid battery in the general status and start/stop status
The EFB battery is usually installed in a corner or side of the engine compartment of the car.
Installation location may vary by vehicle model and manufacturer, it is recommended to consult the vehicle's owner's manual or consult a professional for accurate installation location information.
