jozoking jis n150 truck battery-0

Sealed Maintenance Free Starting Batteries

Home >  Products >  Automotive Batteries >  Sealed Maintenance Free Starting Batteries

JOZO GROUP Top Global Batteries Manufacturers

  • Product description
  • Product feature
  • Specifications
  • Related Products

Product description:

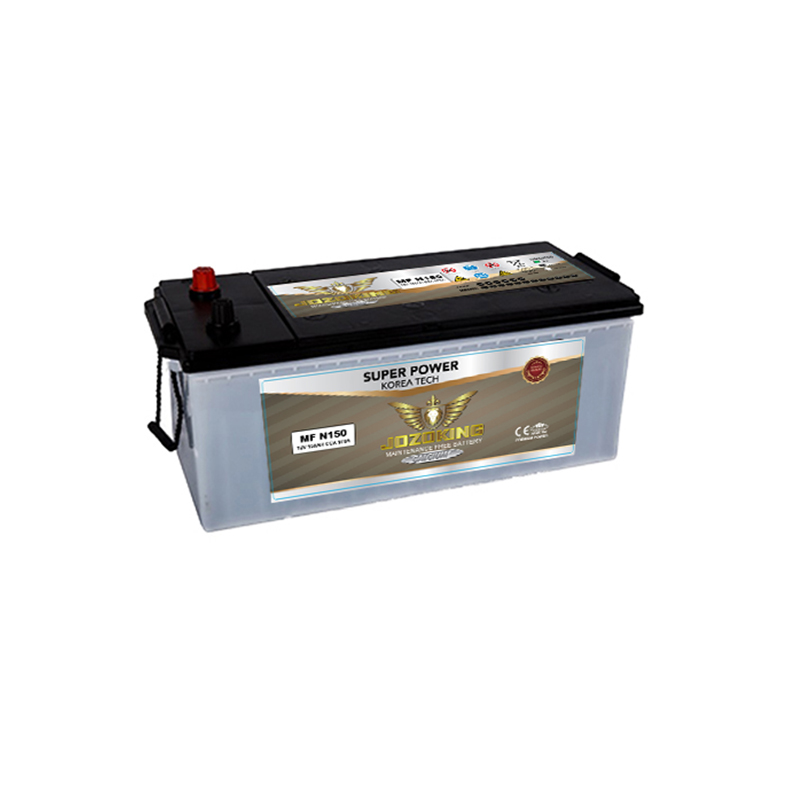

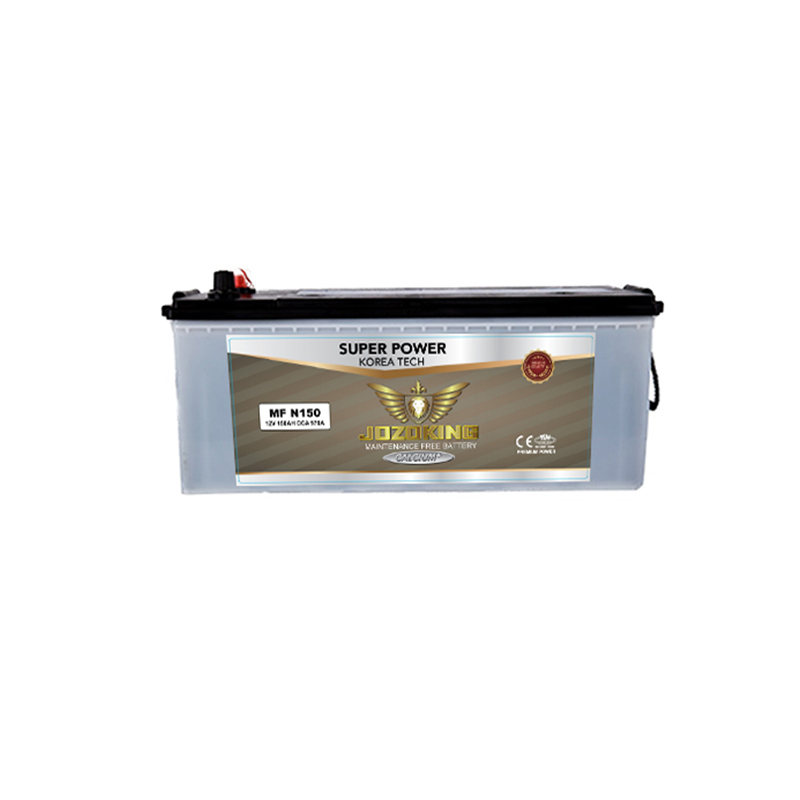

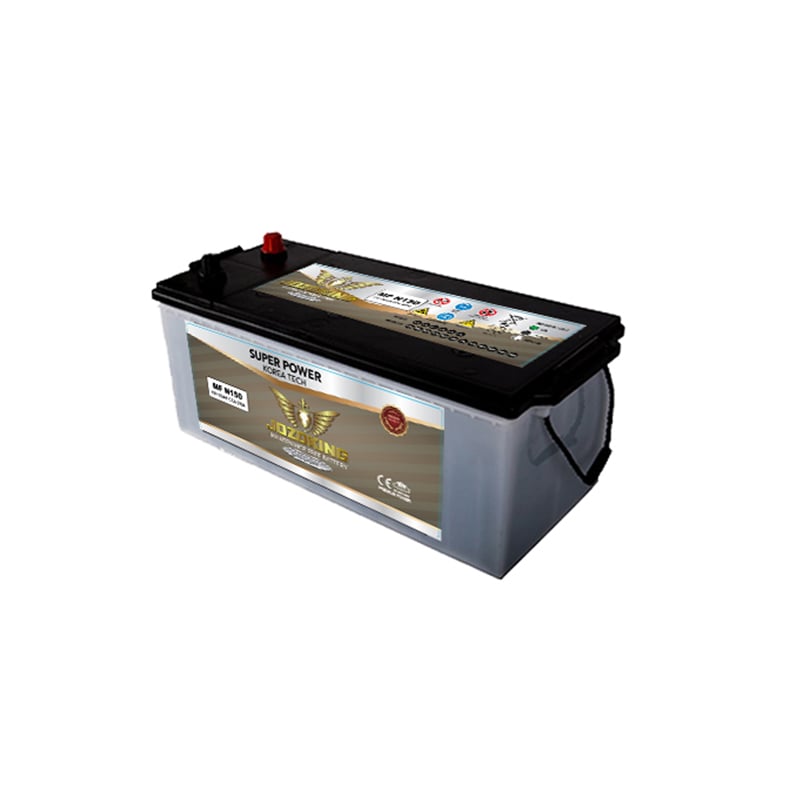

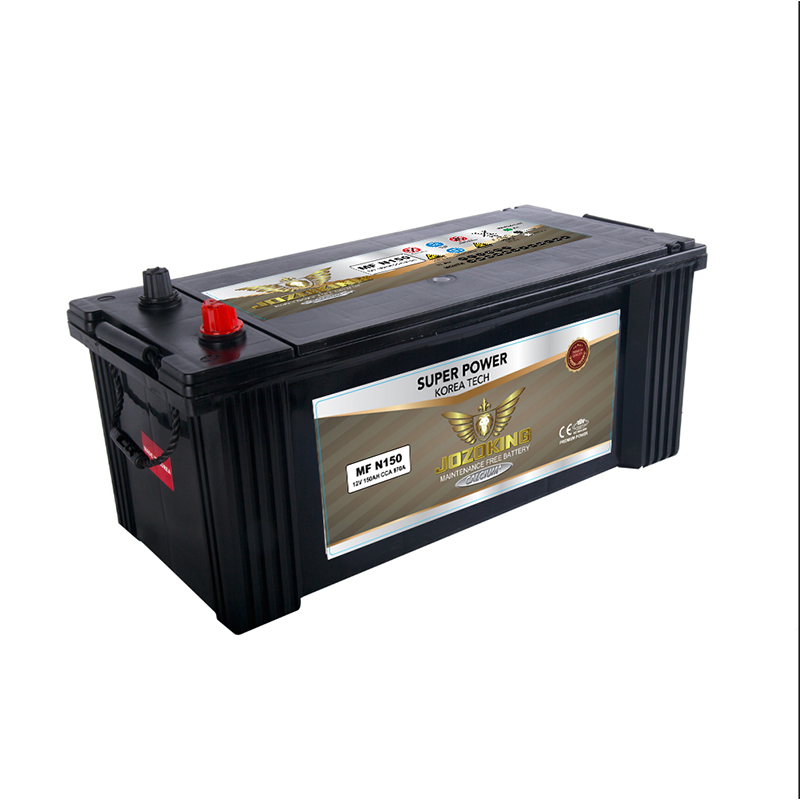

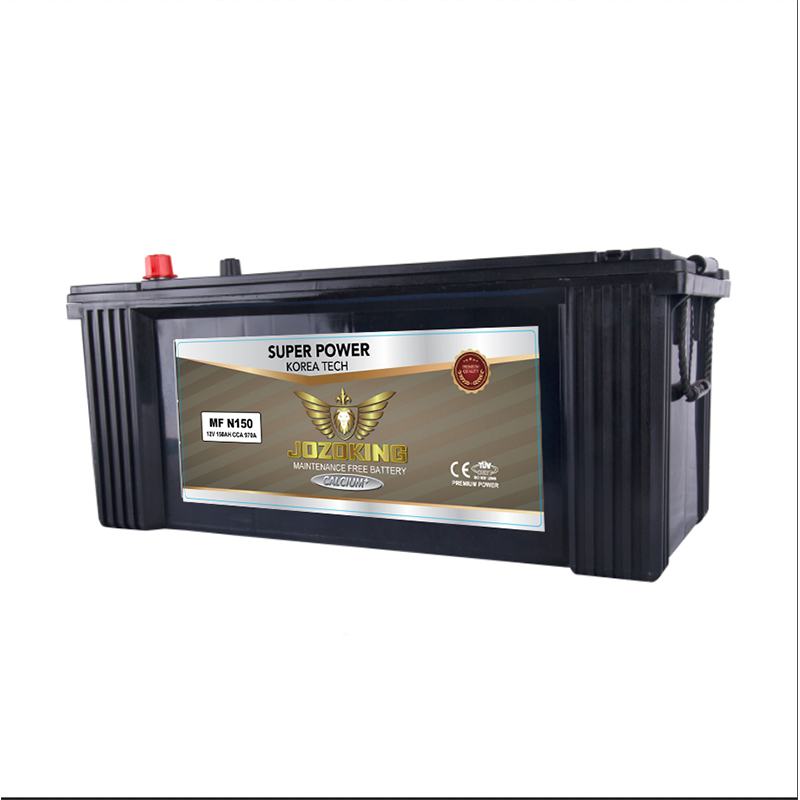

KOREAN TECHNOLOGY JOZOKING

JOZOKING JIS standard N150 145G51 (R/L) lead acid maintenance free battery case is injection molded from tough polypropylene, which effectively prevents damage caused by impact as well as vibration. The PE bag type separator imported from Korea has high microporosity, small size and low internal resistance, suitable for high speed discharge. The terminals are made of high-strength alloy, anti-impact and suitable for high rate discharge.

Brand JOZOKING
Name JIS N150 Truck Start Battey
Volage 12V
Capacity 150Ah
CCA 1090
Dimensions 508*220*236mm
Weight 35.1Kg
Uselifes 5-8 Years
Warranty 2-3 Years

Product feature:

· World's Most Advanced Expanded Grid Technology

Features a uniquely designed expanded grid structure utilizing lead-calcium alloy plates for superior performance and durability.

· Central Bump Design

Incorporates a central bump for enhanced structural integrity and optimized current flow.

· Unique Lead Formulation

Employs a special lead formulation that delivers exceptional performance during high-rate discharge and charging cycles.

· Minimized Water Loss & Self-Discharge

Engineered to significantly reduce water loss and self-discharge rates, ensuring longer service life and reliable standby power.

· High-Conductivity Lead Alloy Components

Utilizes high-conductivity lead alloy for casting and welding critical parts.

· Advanced "TTp" Welding Technology

ADVANCED “TTp” WELDING TECHNOLOGY: Specialized “TTp” welding technology is used to ensure a strong connection and provide excellent performance even at low temperature start-up.


Specifications:

JOZOKING Sealed Maintenance Free Battery (JIS)

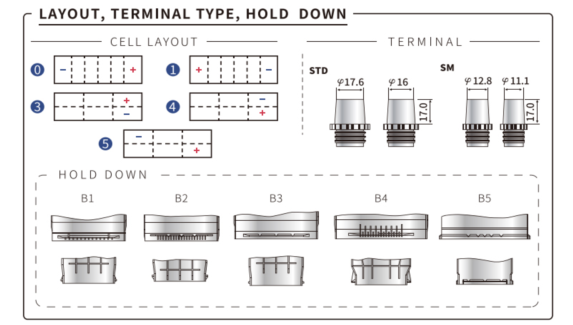

Old JIS New JIS Voltage (V) Capacity (Ah) Dimension(mm) CCA (-18℃) Layout Terminal HOLDDOWN
L W TH
NS40 32B20R 12 32 197 129 224 345 1 SM
NS40L 32B20L 12 32 197 129 224 345 0 SM
NS40Z 36B20R 12 36 197 129 224 385 1 SM
NS40ZL 36B20L 12 36 197 129 224 385 0 SM
NT60-S4R 38B20R 12 36 197 134 224 385 1 SM B5
NT60-S4L 38B20L 12 36 197 134 224 385 0 SM B5
N40 32C24R 12 40 237 129 224 425/440 1 SM/STD
N40L 32C24L 12 40 237 129 224 425/440 0 SM/STD
NS60 46B24R 12 45 237 129 224 480 1 STD
NS60L 46B24L 12 45 237 129 224 480 0 STD
NS60(S) 46B24R(S) 12 45 237 129 224 465 1 SM
NS60L(S) 46B24L(S) 12 45 237 129 224 465 0 SM
NX100-S6R 55B24R 12 45 237 129 224 480 1 STD
NX100-S6L 55B24L 12 45 237 129 224 480 0 STD
NX100-S6RS 55B24RS 12 45 237 129 224 465 1 SM
NX100-S6LS 55B24LS 12 45 237 129 224 465 0 SM
/ 55D23R 12 60 231 172 224 600 1 STD B1
/ 55D23L 12 60 231 172 224 600 0 STD B1
/ 65D23R 12 65 231 172 224 600 1 STD B1
/ 65D23L 12 65 231 172 224 600 0 STD B1
/ 75D23R 12 65 231 172 224 600 1 STD B1
/ 75D23L 12 65 231 172 224 600 0 STD B1
N50 48D26R 12 50 260 173 224 500 1 STD B3
N50L 48D26L 12 50 260 173 224 500 0 STD B3
N50Z 55D26R 12 60 260 173 224 600 1 STD B3
N50ZL 55D26L 12 60 260 173 224 600 0 STD B3
NS70 65D26R 12 65 260 173 224 600 1 STD B3
NS70L 65D26L 12 65 260 173 224 600 0 STD B3
/ 75D26R 12 65 260 173 224 600 1 STD B3
/ 75D26L 12 65 260 173 224 600 0 STD B3
NX110-5 80D26R 12 70 260 173 224 650 1 STD B3
NX110-5L 80D26L 12 70 260 173 224 650 0 STD B3
N70 65D31R 12 70 300 172 224 650 1 STD B3
N70L 65D31L 12 70 300 172 224 650 0 STD B3
N70Z 75D31R 12 75 300 172 224 700 1 STD B3
N70ZL 75D31L 12 75 300 172 224 700 0 STD B3
NX120-7 95D31R 12 80 300 172 224 750 1 STD B3
NX120-7L 95D31L 12 80 300 172 224 750 0 STD B3
/ 105D31R 12 90 300 172 224 800 1 STD B3
/ 105D31L 12 90 300 172 224 800 0 STD B3
N100 95E41R 12 100 408 171 227 880 1 STD
M100L 95E41L 12 100 408 171 227 880 0 STD
N100Z 105E41R 12 105 408 171 227 920 1 STD
N100ZL 105E41L 12 105 408 171 227 920 0 STD
NS120 115E41R 12 110 408 171 227 980 1 STD
NS120L 115E41L 12 110 408 171 227 980 0 STD
N120 115F51R 12 120 505 180 237 880 3 STD
N120L 115F51L 12 120 505 180 237 880 4 STD
N135 150F51R 12 135 508 220 236 960 3 STD
N135L 150F51L 12 135 508 220 236 960 4 STD
N150 145G51R 12 150 508 220 236 1090 3 STD
N150L 145G51L 12 150 508 220 236
N170 165G51R 12 170 508 220 236
N170L 165G51L 12 170 508 220 236
N180 195G51R 12 180 515 266 236
N180L 195G51L 12 180 515 266 236
N200 190H52R 12 200 515 266 236
N200L 190H52L 12 200 515 266 236
N220 245H52R 12 220 515 266 236
N220L 245H52L 12 220 515 266 236
/ 6TN 12 100 256 266 230
