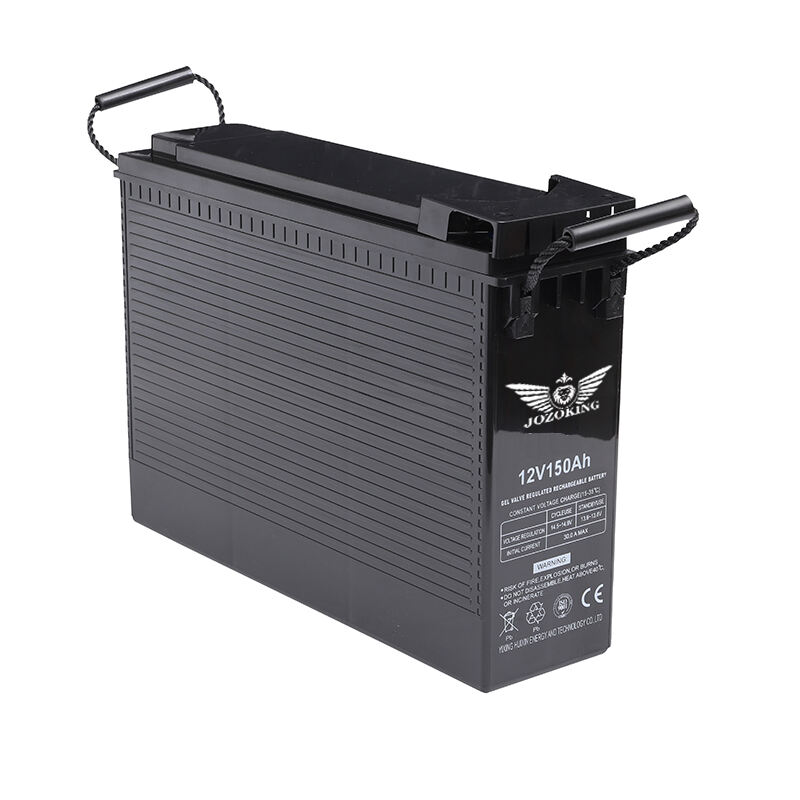

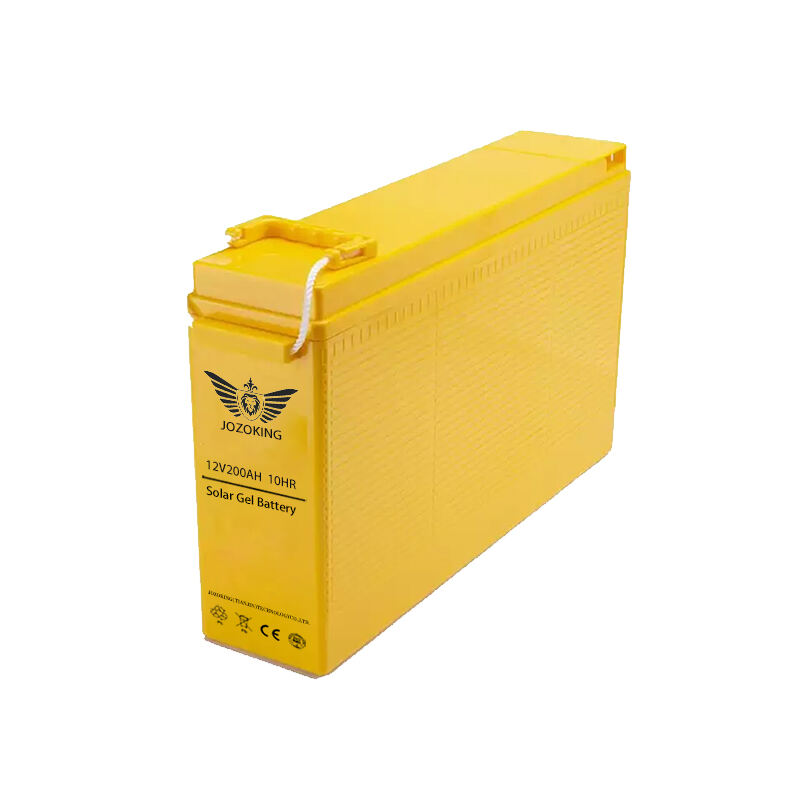

Front Terminal Battery (Front Terminal Battery) is a special design of lead-acid battery, whose electrode connection terminals are located in the front of the battery (usually on the top or side), instead of the top layout of traditional batteries. This design is mainly for the limited space and frequent maintenance of the scene, especially in the field of communications, data centers and other widely used.
JOZOKING's unique design of thickened lead-tin-calcium grill design with extremely low corrosion rate and 30% longer life.
● Strong heat dissipation and wide operating temperature range
● Avoid acid mist being separated out,environment friendliness

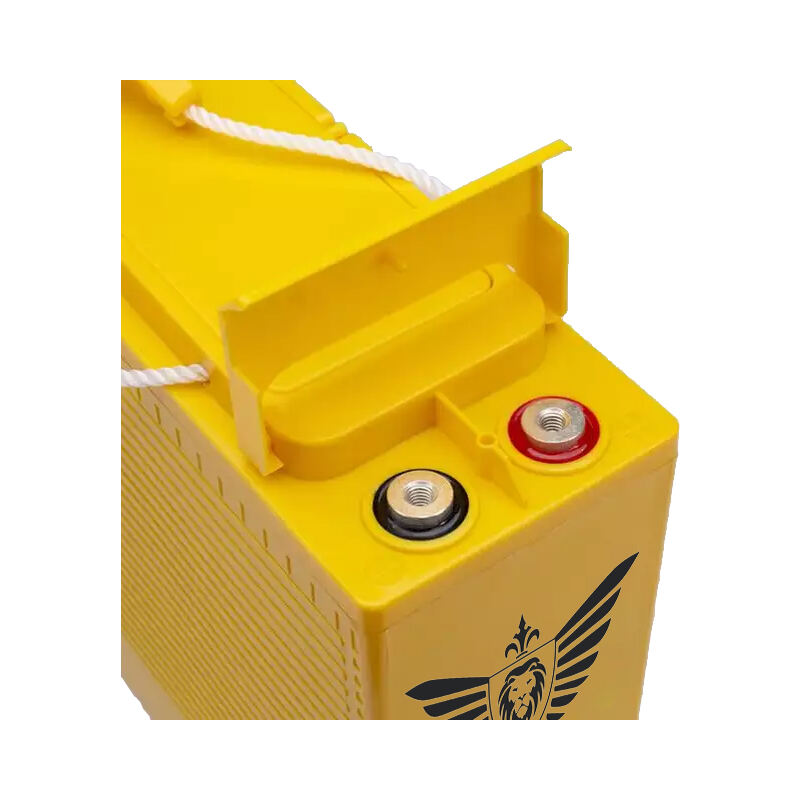

● Slim shape design and front terminal connection
● Prominent high rate discharge performance
● Optional fire retardant design
● Long designed service life
● Excellent discharge performance
● Environment friendliness
● Solar and wind energy storage system
● EPS and UPS battery backup
● Telecommunication equipment
● Power plant and transmission system
● Great for power supply system of private network or LAN
● Signal system,emergency lighting system,security system
Model | Voltage (V) | Capacity (Ah) | Weight (KG) | Dimension(MM) | Terminal | ||
Length | Width | Total Height | |||||
FT12V100 | 12 | 100 | 31 | 409 | 110 | 295 | M8 |
FT12V150 | 12 | 150 | 41 | 551 | 110 | 288 | M8 |
FT12V180 | 12 | 180 | 54 | 560 | 125 | 316 | M8 |
Model | Voltage (V) | Capacity (Ah) | Weight (KG) | Dimension(MM) | Terminal | ||
Length | Width | Total Height | |||||
GFT12V100 | 12 | 100 | 31 | 409 | 110 | 295 | M8 |
GFT12V150 | 12 | 150 | 41 | 551 | 110 | 288 | M8 |
GFT12V180 | 12 | 180 | 54 | 560 | 125 | 316 | M8 |
