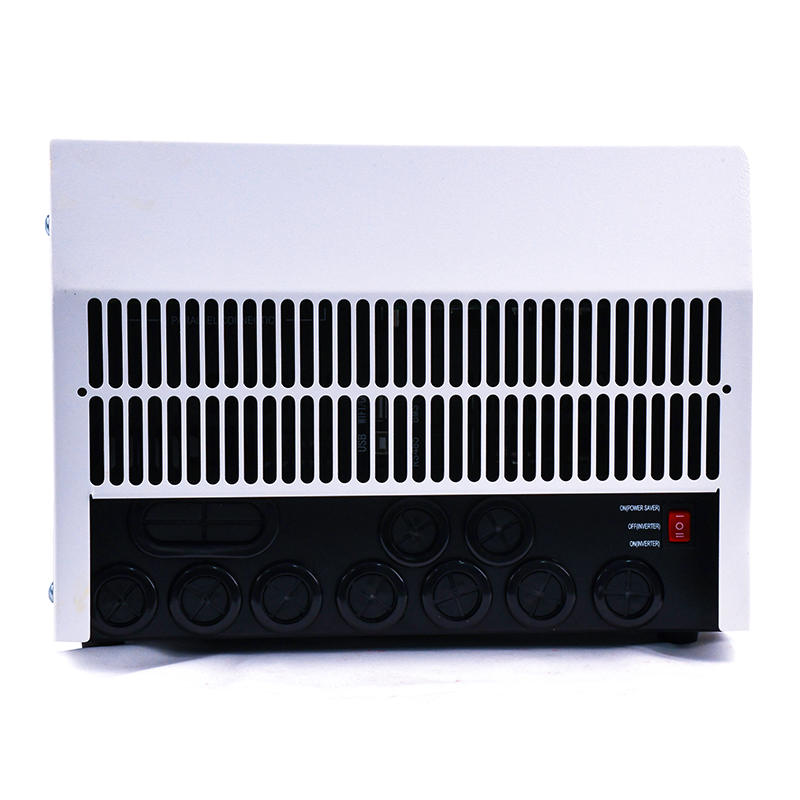

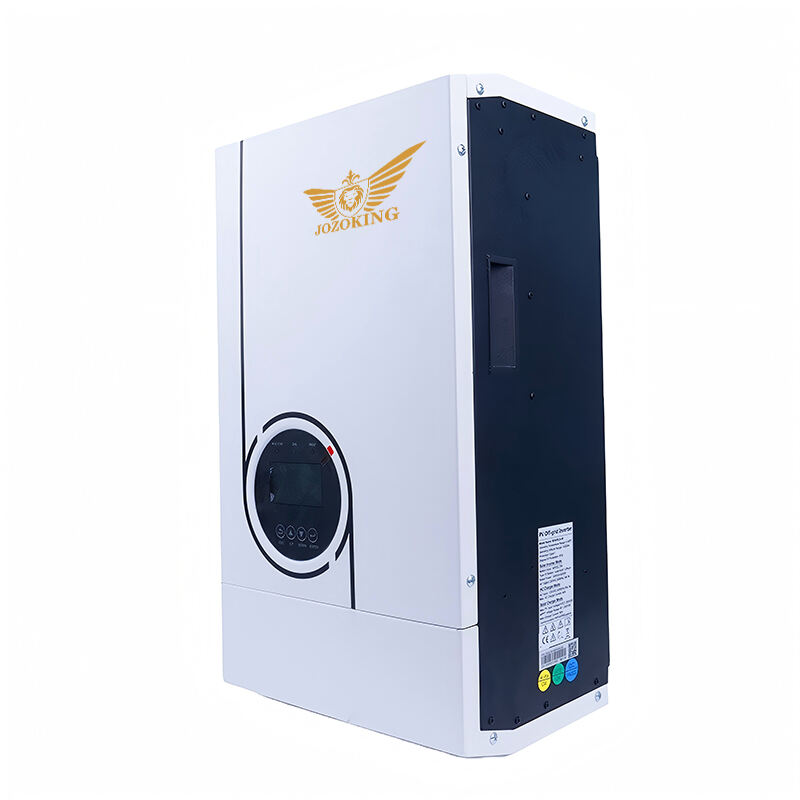

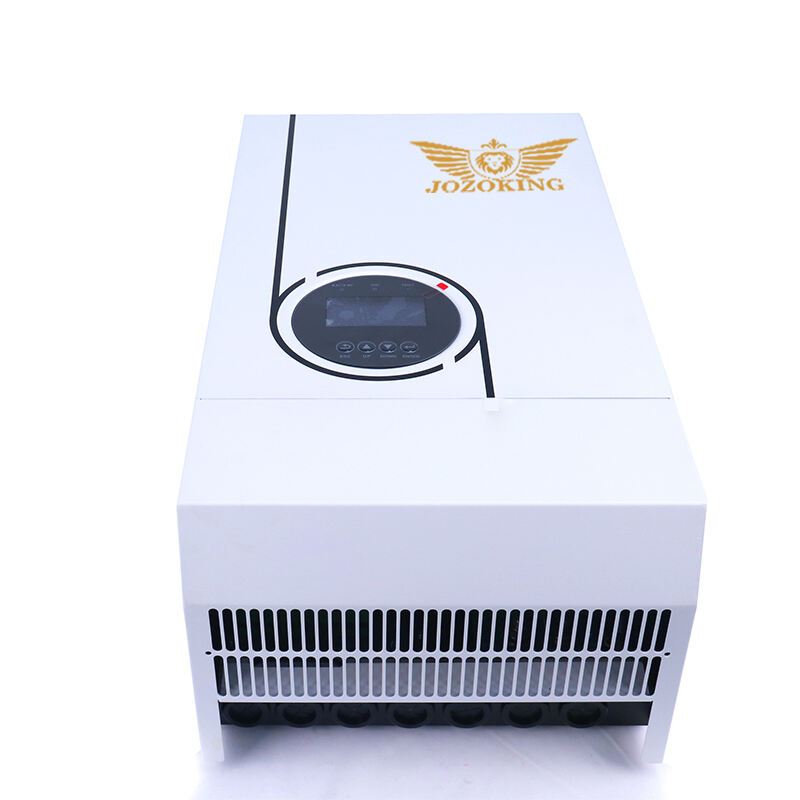

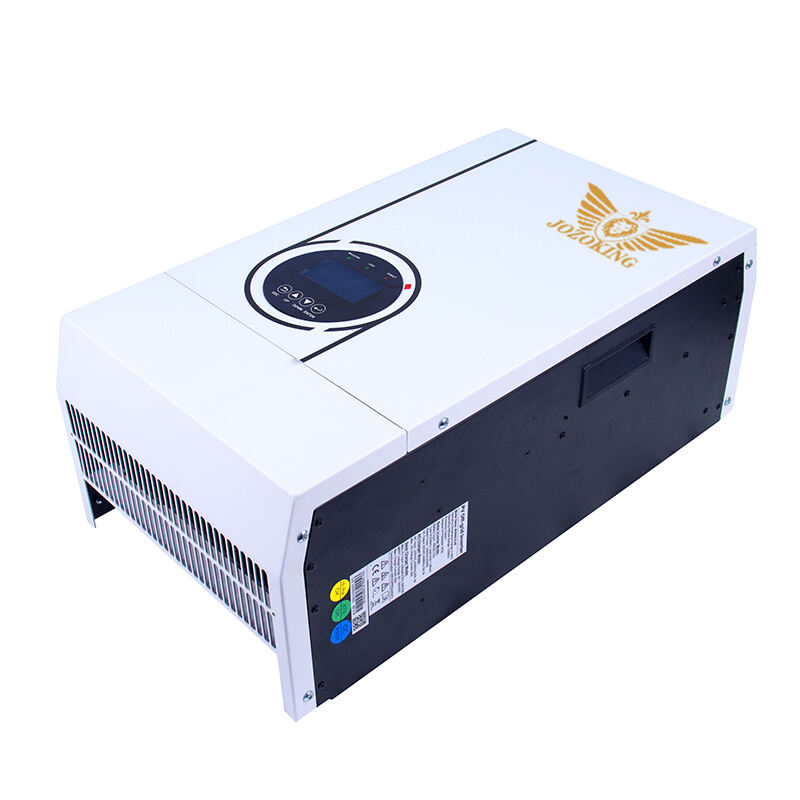

JOZOKING 6KW Low Frequency Hybbrid Inverter
The unique MPPT algorithm of JOZOKING inverters significantly improves the system power generation efficiency by dynamically tracking the maximum power point (MPP) of the PV panels, and achieves 10-30% power generation gain under fluctuating irradiation conditions.
● Rated power 6kw
● Pure sine wave AC output
● Built-in MPPT solar charge controller
● Low frequency with transformer
● High conversion efficiency
● Low power consumption when no load
● WIFI/GPRS remote monnitoring
● With Ac couple function
| Model | M6000LS-48SP-M |
| Battery Voltage Range | Rated 48Vdc,range 40~60Vdc |
| Monitoring Option | WiFi or GPRS |
| parallel Option | Yes,up to 6units |
| INVERTER OUTPUT | |
| Output Voltage | 104V-110V-115V-120VAC/208V-220V-230V-240VAC |
| Output Frequency | 50Hz/60Hz ±1% |
| Rated Power | 6000VA/6000W |
| Surge Power | 18000VA/18000W |
| Max.Inverting Efficiency | 94% |
| Zero Load Power | ＜ 35W |
| Zero Load Power in Power Save Mode | ＜ 20W |
| Max.PV Input Power | 4500W |
| PV Voltage Range | 60~250Vdc |
| Max.PV Charge Current | 80A |
| Max.PV Charge Efficiency | 97.50% |
| AC CHARGER | |
| AC Charge Input Voltage Range | 154Vac~260Vac |
| AC Input Frequency Range | 45Hz~65Hz |
| Max.AC Charge Current | 60A |
| Max.total(PV+AC) Charge Current | 140A |
| AC BYPASS | |
| Switching Time | ＜ 10ms |
| AC Input Voltage Range | 154Vac~272Vac(default) |
| Max.PV Input Current | 50A |
| OTHERS | |
| Protection | Output Short circuit;Overload;Battery Voltage Too High;Battery Voltage Too Low;Temperature Too High |
| Enclosure Protection Degree | IP20 |
| Dimension,D*W*H(mm) | 455*295*130mm |
| Net Weight(kg) | 38.5kg |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -20℃ to 50℃ (fan assisted cooling) |
| Storage Temperature | -40℃ ~60℃ |
